Model: GD08AС

Price: 110.63 EUR
* All prices are without VAT

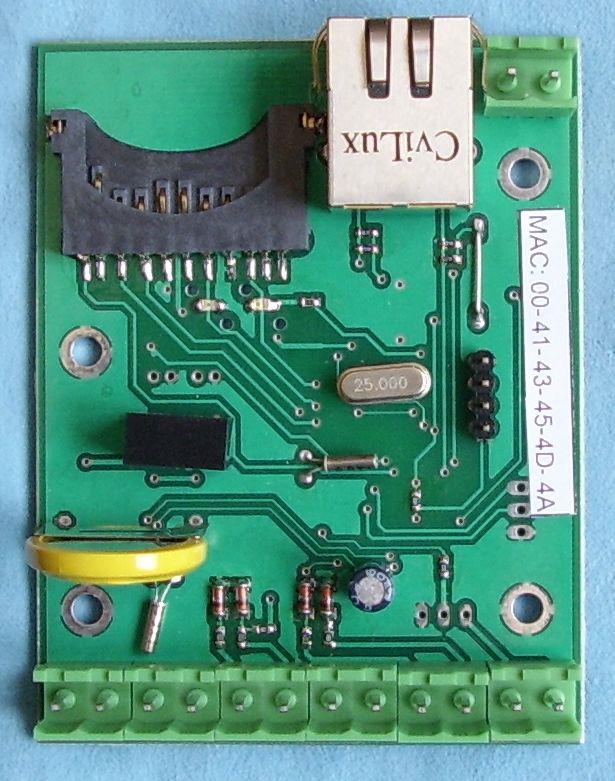

GD08AC TCP/IP, RS485/RS232 communication,information input from 1/2 proximity readers and output for doorlock/barrier/relay up to 1A 12V, 32MB reserved memory on SD card, realtime clock with lithium battery, tamper switch input, AES 128 encryption
82/63 mm
Dimensions
12V
Voltage
50mA
Consumption
-10 to70C
Operating temperature
0% to 85%
Humidity
T6527
Number of cards
RS232, RS485, WG26
Format card reader
2 No
Number in/out
max 2 no.
Number reader
655 360 for 16MB
Events
TCP/IP, RS485, RS232
Communication
DIN or GD1816MB
Mounting
